Magnetscape - Magnetic measurement & analysis tool

icon_magnetscape

"Magnetscape" is a new measurement app that observe invisible magnetic fields by using a built-in iPhone magnetic sensor.

There are various magnetic fields in our surroundings. For example, the magnetic field fluctuates even with a large motor, a compressor, or a metal nearby. Earth's magnetic field exists even in places where there is nothing, and we are affected by that magnetic filed.

This app can monitor the surrounding magnetic field in real time, it can be used for various purposes in real life. For instance, it can be used for investigation of static magnetic field, search for low electromagnetic field at alternating magnetic field (electromagnetic field), metal detection and more.


mgs_scope

Please to click the link below to visit the product page on AppStoreTM.

It will move to AppStore.

Communications charges when connecting to AppStore will be borne by the customer.
iPhone is a trademark of Apple Inc., registered in the U.S. and other countries. AppStore is a service mark of Apple Inc.

Products Information

Version: 6.0
Release date: January 17, 2024. UTC
Size: 0.7 MB
Category: Utilities, Education
Compatibility: Compatible with iPhone. Requires iOS 17.1 or later. iPod and iPad products are not recommended.
Status: Now distributing.

Features

Graphical display of magnetic field observation by magnetic sensor (Scope)
Time displacement graph display of magnetic field observation (Time)
FFT analysis (FFT)
Magnetic field observation

- X axis: intensity (Bx) of the magnetic field of (the right direction toward the screen)

- Y axis: intensity (By) of the magnetic field of (upward toward the screen)

- Z axis: magnetic field strength (Bz) in the of (vertical upward direction of the screen)

- Composite magnetic flux density: The magnetic field strength (Bcomp) that takes all three components of the x axis, the y axis, and the z axis into consideration

- Sampling frequency: 32 Hz

- Unit of observation value: uT

Measurement time: 3 minutes
Alert function: A warning message will be displayed if the composite magnetic flux density exceeds 300 μT.
Alert sound generation function (Sound On/Off)
Angle display function in Scope mode (Angle)
Clock display function in Scope mode
Peak hold function on FFT mode.
Snapshot of measurement display (Snap)

Magnetic field & Electromagnetic wave

Magnetic field is the space where the magnetic force is working, there are strength and direction because of vector quantity. For example, permanent magnets have N poles and S poles, those with different polarities attract, and ones with the same polarity repel each other's magnetic force in the space.

Furthermore, the DC magnetic field is a magnetic field whose intensity is kept constant, there are geomagnetism, permanent magnets, etc. The AC magnetic field is a magnetic field in the case where the intensity of the magnetic field periodically changes, and it occurs near the transmission line, transformer and electric equipment. Such a magnetic field and an electric field are closely related, and it is also called an electromagnetic field in a low frequency region, also called an electromagnetic wave in a high frequency region. Also, where high voltage or high frequency current flows, a strong magnetic field appears around it.

Magnetic field and electromagnetic waves are not directly visible to the eyes, so various phenomena and problems are overlooked. In particular, electromagnetic waves from electronic devices have various physical effects in some cases.

This app is a measurement tool for detecting such a magnetic field. It is possible to measure and display the strength and direction of the magnetic field, the time change of the magnetic field strength, FFT analysis of the triaxial synthetic magnetic field, etc.


Important initial settings

In order for this app to work properly, it is necessary to make the following initial settings related to the iOS system.

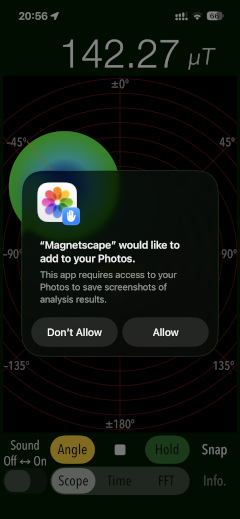

Photos access permission setting

When the first time you save an image data with Snapshot, the iOS system asks for permission to access the "Photos" library. In this case, you need to enable access to "Photos".

If you have not enabled this setting, this app can not work by privacy restrictions of the iOS system. Please enable the access permission on the iOS setting, "Settings > Privacy & Security > Photos".

Operation procedure

This app performs to measure and analyzes the magnetic field of the surrounding environment using the three-dimensional magnetic data from the built-in magnetic sensor of the iPhone.


1) Confirmation of usage method

Upon the initial launch of the application, usage information in Info view is displayed. Usage notes and explanation of functions are displayed. Please check this and use this application. Tap Close button to return to the top view for measurement.


mag_info mag_startup

2) Measurement operation

This app has three measurement modes. You can select either Scope, Time Graph (Time), or Frequency Analysis (FFT). The default is Scope, and measurement mode can be switched even during measurement operation. ("Magnetscape Lite" does not have Frequency Analysis (FFT) mode.)

Tap the start button to start magnetic field measurement in each mode and stop by tapping the stop button.


mgs_mode

3) Notes on measurement

Automatically stops in 3 minutes from the start of measurement.

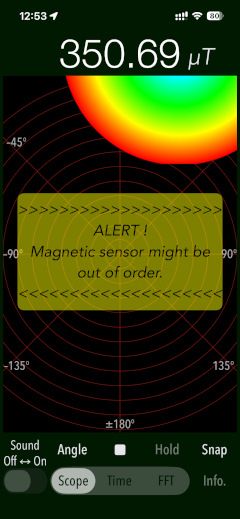

ALERT will be displayed if the displayed value exceeds 300uT during magnetic field measurement. The measurement will continue even then, but if a strong magnetic field is applied for a long time, the magnetic sensor may be disturbed.

When Sound switch is set to "On", an alert sound is generated. The alert sound changes according to the strength level of the magnetic field. It is always "Off" at the start. Adjust the volume with the iPhone hardware volume.


mgs_alert

Magnetic field observation

Magnetic field observation of this application is performed according to the terminal posture with the following data and conditions.

Magnetic field observation

- X axis: intensity (Bx) of the magnetic field of (the right direction toward the screen)

- Y axis: intensity (By) of the magnetic field of (upward toward the screen)

- Z axis: magnetic field strength (Bz) in the of (vertical upward direction of the screen)

- Composite magnetic flux density: The magnetic field strength (Bcomp) that takes all three components of the x axis, the y axis, and the z axis into consideration

- Sampling frequency: 32 Hz

- Unit of observation value: uT

Scope

In Scope, numerical value of magnetic field intensity (unit: uT) is displayed, and graphic display of "Level circle" is made to show the magnitude and direction of the magnetic field. The display position of "Level circle" moves according to the polarity of the magnetic source, but if the polarity is in the same direction as the geomagnetism, it is attracted towards the north pole and conversely if the polarity is opposite (S pole) it moves away. "Level circle" will be displayed in the direction of the geomagnetism (north pole) (north direction) unless there is a metal or magnetic field generating near it.

In addition, by tapping Angle button, you can enable the angle display of the magnetic field.


mgs_scope

By tapping the center of Scope screen to display it, and tap it again to turn off the display.


mgs_scope_clock

Time transition graph (Time)

Time transition of RAW data from the magnetic sensor and post-correction data in the sensor is displayed. It is a time graph of each axis value (Bx/By/Bz) and composite magnetic flux density (Bcomp) in three-dimensional space. The vertical axis shows the intensity and the horizontal axis updates in real time with time. You can scroll up to 180 seconds.

Time Graph

- Upper Graph : Raw magnetic-field (uT) - RAW data by magnetic sensor

- Lower Graph : Calibrated magnetic-field (uT) - post-correction data in the sensor


mgs_time

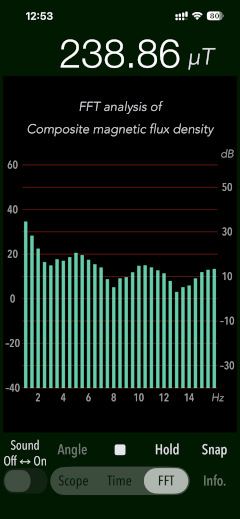

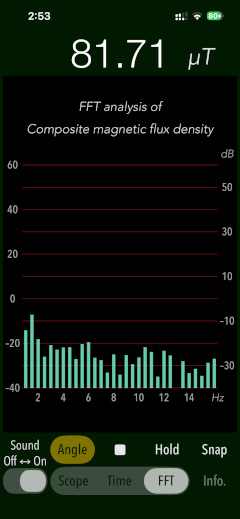

Frequency analysis (FFT)

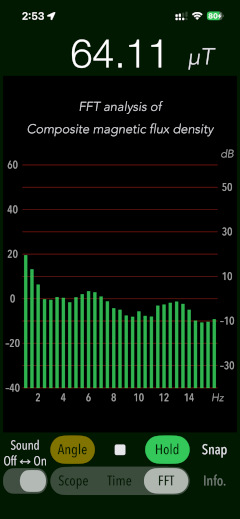

It performs frequency analysis by FFT for varying AC magnetic field. FFT analysis result of composite magnetic flux density is displayed in graph. By tapping Hold button during FFT mode measurement, the peak level of the FFT graph is held and displayed. The maximum value of each frequency component can be observed.

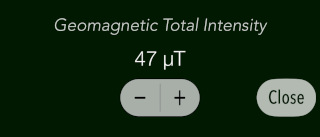

In addition, the signal strength of each frequency component is calculated based on the total geomagnetic field force. For terrestrial magnetism correction, please set the total terrestrial magnetism of your residence within the range of 45 ± 15 uT. By the setting in Info view, you can set a reference geomagnetic total intensity.


mgs_gti

FFT Graph

- Horizontal axis: Frequency 1 - 16 Hz (0.5 Hz)

- Vertical axis: dB value (Ratio to the default value of 45 μT. The reference value can be set in units of 45 ± 15 μT / 1 μT)

mgs_fft mgs_fft

Reference: To find out the geomagnetic total intensity in your area, the following site will be helpful.

National Oceanic and Atmospheric Administration (NOAA) / Magnetic Field Calculators

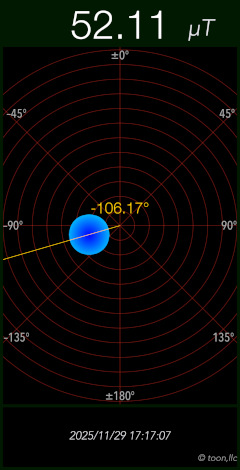

Snapshot

By tapping Snap button, you can save the current measurement display to "Photos". When you save for the first time, confirmation of access permission to "Photos" is requested from the iOS system. Please be sure to allow that access.


mgs_snap

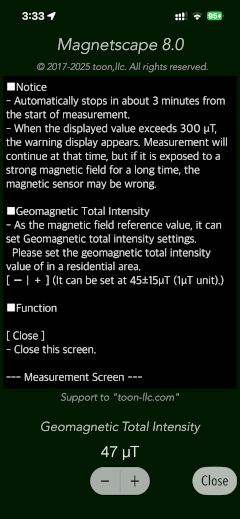

Information view

By tapping Info button, it is displayed the product information and usages. By tapping Close button again, it will return to the previous measurement view.


mag_info

Release Note

"Magnetscape version 6.0" was released on January 17, 2024. UTC
"Magnetscape version 5.0" was released on December 28, 2022. UTC
"Magnetscape version 4.0" was released on January 22, 2022. UTC
"Magnetscape version 3.2" was released on February 12, 2021. UTC
"Magnetscape version 3.1" was released on November 4, 2020. UTC
"Magnetscape version 3.0" was released on June 3, 2020. UTC
"Magnetscape version 2.0" was released on June 7, 2019. UTC
"Magnetscape version 1.1" was released on March 6, 2018. UTC
"Magnetscape version 1.0" was released on April 19, 2017. UTC

Note

The display value of this application is the RAW output data from the magnetic sensor itself. It does not make any processing such as filtering processing inside the application.
Since the magnetic sensor is a delicate device, the internal reference value of the magnetic sensor may be disturbed by being exposed to extremely strong magnets and magnetic fields for a long time.
If the reference value of the magnetic sensor goes wrong, once you stop the application and leave it for a while, the magnetic sensor is readjusted automatically. If the magnetic sensor is still unstable, please try the electronic compass calibration and its reset procedure.
Depending on the terminal model, it may take several seconds to 10 seconds for the measured value from the magnetic sensor to stabilize.
